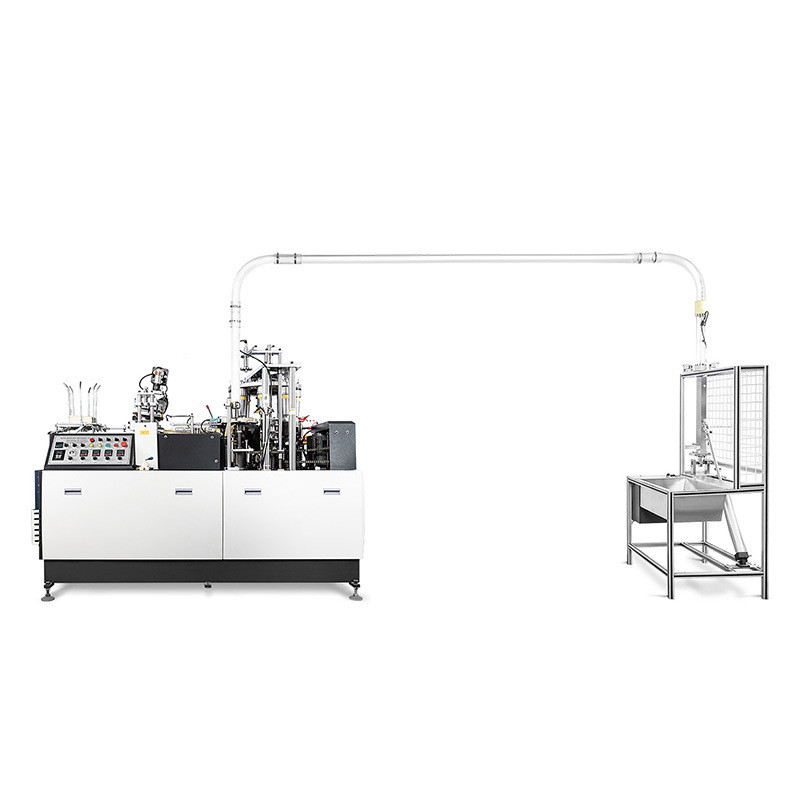

Intelligence Paper Cup Plate Making Machine 380V 220V Heat Knurling Bottom
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Desu |
| Minimum Order Quantity | 1 set |
| Price | $30,000.00/Pieces 1-9 Pieces |
| Packaging Details | Wooden packing |
Product Details
| Model | High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 | Paper Cup Size | 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm |
|---|---|---|---|
| Rated Speed | 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. | Raw Material | One Or Two SidePE Coated Paper(Popular For Hot And Cold Drink Cups) |
| Power Source | 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. | Cup Bottom Knurling | Heater Knurling(ifuse Single PE Coated Paper) |
| High Light | 380V paper cup plate making machine,Heat Knurling paper cup plate making machine |
||
Product Description
paper cup sleeve making machine paper cup plate making machine one time paper cup machine automatic
Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater
Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)
Electric System:
High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.
Servo Motor:
The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
|
Paper size : |
2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.) |
|
Rated speed: |
70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute |
|
Paper material: |
140-250 GSM.140~350gsm. |
|
Power requirements: |
50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements |
|
Total power : |
6.5 kw, 7.5 kw. |
| Total weight : | Gw /NW:1750 kgs/1650 Kgs. |
Excerpted from the Internet, for reference only
How do we choose the right paper cup?
The selection of paper cups is simply summarized as: one look, two pressures, and three smells. "One look" refers to the identification information, production license number and QS logo on the packaging. At the same time, depending on the color of the paper cup, don't be too bright. Look at the paper cup against the light, and there must be no impurities. Take a photo under the fluorescent light, if the paper cup appears blue under the fluorescent light, it proves that the fluorescent agent may exceed the standard. "Second pressure" refers to gently squeezing both sides of the paper cup with your hands to see if the cup body is stiff. "Three smells" means to smell the paper cups for any pungent odor, especially the smell of ink or musty.
In addition to these picking tips, it's best not to drink the first glass of water when using disposable paper cups. If the paper product is too white in color or contains impurities, and if it produces a strange smell when pouring hot water into the paper cup and paper bowl, do not use it again. During use, try to distinguish between cold drink cups and hot drink cups, because cold drink cups and hot drink cups have different temperature tolerances on the sides and bottom of the paper cups. If hot water is poured into the cold drink cup, it is likely to leak and cause burns and other hazards. All in all, there is still a need to reduce the use of disposable paper cups.
