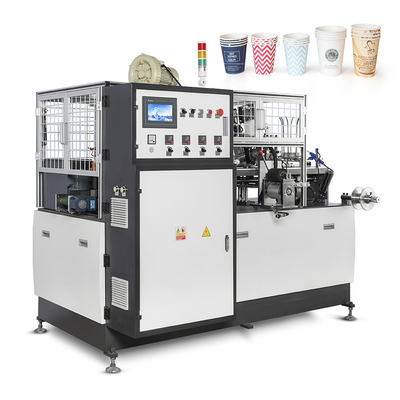

PE Coated Paper Cup Vaccum Forming Machine High Speed Ripple Paper Cup Machine
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Desu |
| Minimum Order Quantity | 1 set |
| Price | $30,000.00/Pieces 1-9 Pieces |
| Packaging Details | Wooden packing |
Product Details
| Model | High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 | Paper Cup Size | 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm |
|---|---|---|---|
| Rated Speed | 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. | Raw Material | One Or Two Side PE Coated Paper(Popular For Hot And Cold Drink Cups) |
| Power Source | 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. | Cup Bottom Knurling | Heater Knurling(ifuse Single PE Coated Paper) |
| High Light | 380V cup vaccum forming machine,Servo Motor cup vaccum forming machine,High Speed ripple paper cup machine |
||
Product Description
plastic cup sealer machine cup vaccum forming machine ice cream cup sealing machine ripple paper cup making machine
Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater
Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)
Electric System:
High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.
Servo Motor:
The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
|
Paper size : |
2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.) |
|
Rated speed: |
70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute |
|
Paper material: |
140-250 GSM.140~350gsm. |
|
Power requirements: |
50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements |
|
Total power : |
6.5 kw, 7.5 kw. |
| Total weight : | Gw /NW:1750 kgs/1650 Kgs. |
Excerpted from the Internet, for reference only
disposable paper cups making machine
The disadvantage of drinking water from a cup is that the water temperature is too high. Because the cup is plastic, the high temperature will cause the plastic to melt, so the plastic ingredients will enter the boiling water. At this time, drinking boiling water may affect our stomach health. The cup with heavy color contains pigment, and the boiling water is easy to cause the pigment to enter the water, affecting our health.
What's the harm of drinking water with plastic cups?
Is silicone cup safe?
Generally speaking, silicone cups are safe. The silicone bottle is made of environment-friendly silicone. Temperature resistance: - 40-220 ° C, durable, and never deformed. It can be folded into a pocket for use!
Food silica gel is an inorganic polymer colloid material formed by the shrinkage of silicic acid, and its main component is silicic acid shrinkage. mSiO2? nH2O. It has good chemical stability and does not react with any acid or base except for the base and hydrofluoric acid. It is commonly used in baby pacifiers, bottles and other products with high safety requirements.
