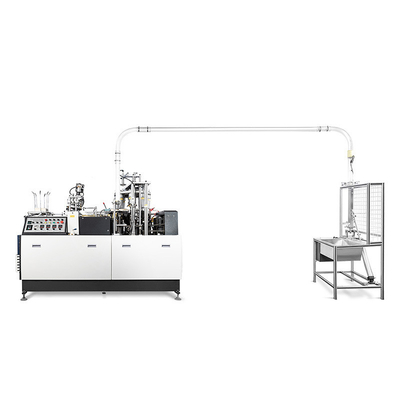

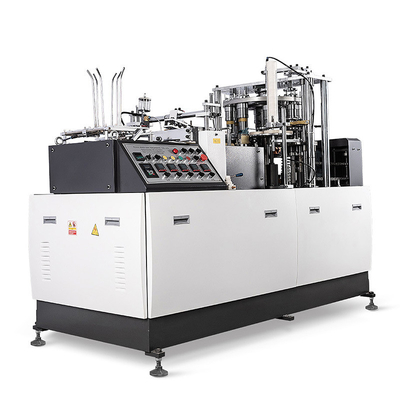

paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine

  • paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine
  • paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine
  • paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine
Place of Origin Guangdong, China
Brand Name Desu
Minimum Order Quantity 1 set
Price $30,000.00/Pieces 1-9 Pieces
Packaging Details Wooden packing
Product Details
Model High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 Paper Cup Size 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm
Rated Speed 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. Raw Material One Or Two SidePE Coated Paper(Popular For Hot And Cold Drink Cups)
Power Source 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. Cup Bottom Knurling Heater Knurling(ifuse Single PE Coated Paper)
Leave a Message
Product Description

paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machinepaper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine 0

Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater

Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)

paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine 1

paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine 2

Electric System:

High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.

paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine 3



Servo Motor:

The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine 4



Paper size :

2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.)

Rated speed:

70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute

Paper material:

140-250 GSM.140~350gsm.

Power requirements:

 50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements

Total power :

6.5 kw, 7.5 kw.
Total weight : Gw /NW:1750 kgs/1650 Kgs.




paper coffee cup making machine machines for manufacturing paper cups paper plates and cups making machine 6

Excerpted from the Internet, for reference only

Which industries will customize their own brand logo paper cups? Disposable paper cups are suitable for all walks of life, sales departments, office pantries, retail stores, building materials, home furnishing, banks, state-owned enterprises, real estate, corporate meetings, education and training institutions and other industries like customization The paper cups with their own company's brand image are convenient, fast, low cost, practical and can spread the corporate image, so more and more people are choosing to customize the paper cups with their own brand in the factory.

Precautions:

❶: Do not mix cold and hot paper cups.

❷: Both paper cups are not suitable for alcoholic beverages. Alcohol has strong permeability and is easy to cause leakage. The longer the time, the more leakage.

❸: Do not use disposable paper cups repeatedly, the firmness will become lower.

01 Waxed Paper Cups

Waxed paper cups are coated with a layer of wax on the inner wall of the paper cups to isolate the food or drinking water inside the paper cups from direct contact with the paper container. Now they are generally used as cold drink cups.
