china-paper-cup-making-machine paper cup machine china manual paper cup sealing machine
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Desu |
| Minimum Order Quantity | 1 set |
| Price | $30,000.00/Pieces 1-9 Pieces |
| Packaging Details | Wooden packing |
Product Details
| Model | High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 | Paper Cup Size | 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm |
|---|---|---|---|
| Rated Speed | 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. | Raw Material | One Or Two SidePE Coated Paper(Popular For Hot And Cold Drink Cups) |
| Power Source | 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. | Cup Bottom Knurling | Heater Knurling(ifuse Single PE Coated Paper) |
Product Description
china-paper-cup-making-machine paper cup machine china manual paper cup sealing machine

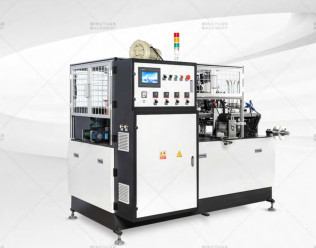

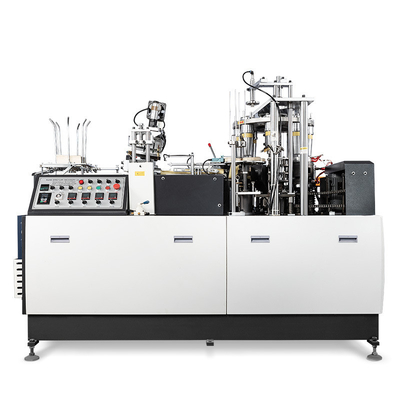

Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater
Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)
Electric System:
High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.
Servo Motor:
The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
|
Paper size : |
2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.) |
|
Rated speed: |
70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute |
|
Paper material: |
140-250 GSM.140~350gsm. |
|
Power requirements: |
50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements |
|
Total power : |
6.5 kw, 7.5 kw. |
| Total weight : | Gw /NW:1750 kgs/1650 Kgs. |
Excerpted from the Internet, for reference only
Laminated (PE) paper cups are coated with a layer of lamination (PE) on the inner wall of the paper cup, which is very smooth and can play the role of waterproof and oil-proof. PE is polyethylene, and polyethylene is the safest chemical in food processing, which is what we often call plastic.
This material is odorless, non-toxic and has a wax-like feel with low water absorption, so it is often used as a waterproof material. Its melting point is between 120° - 140°, while the boiling point of water is 100°, so it does not dissolve in water and is safer to use.
Most of the disposable paper cups on the market are mostly single-layer coated (PE) paper cups, that is, only the inner wall of the paper cup has a coating, but the outer wall does not.
Therefore, it is not recommended to use for cold drinks, because it is easy to form condensed water on the outer wall of the cup when holding cold drinks. The condensed water easily softens the cup body, reduces the stiffness, and the paper cup is easily deformed, causing water to spill.
In fact, the number of waxed paper cups on the market has decreased a lot. Most of what we see are coated (PE) paper cups. If you want to drink hot drinks, buy single-layer coated paper cups. If you want to drink cold drinks, it is best to buy double-layer coated paper cups. Paper cups (the outer and inner walls are coated with film).
