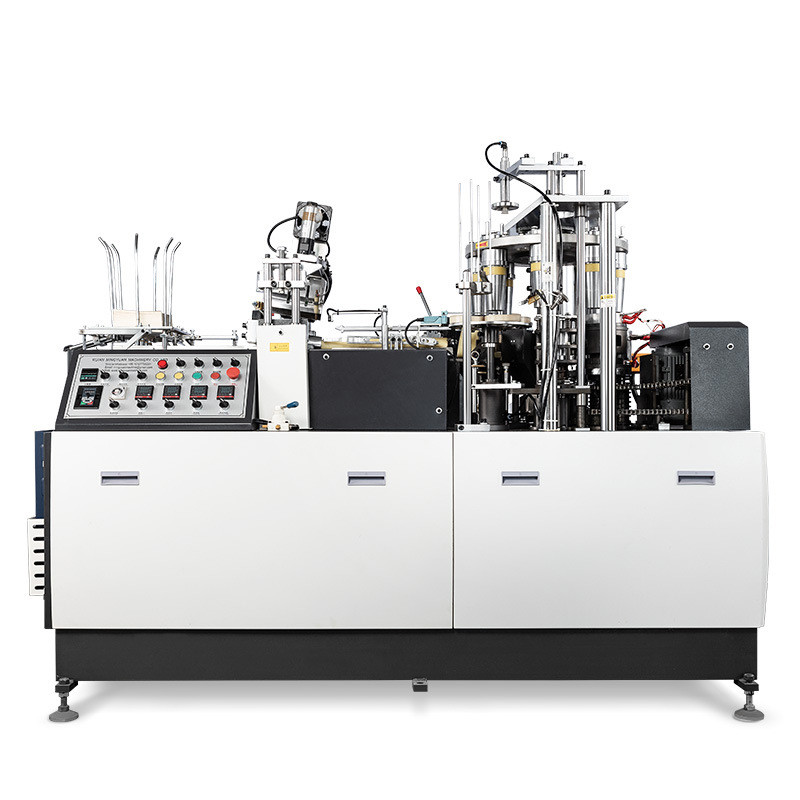

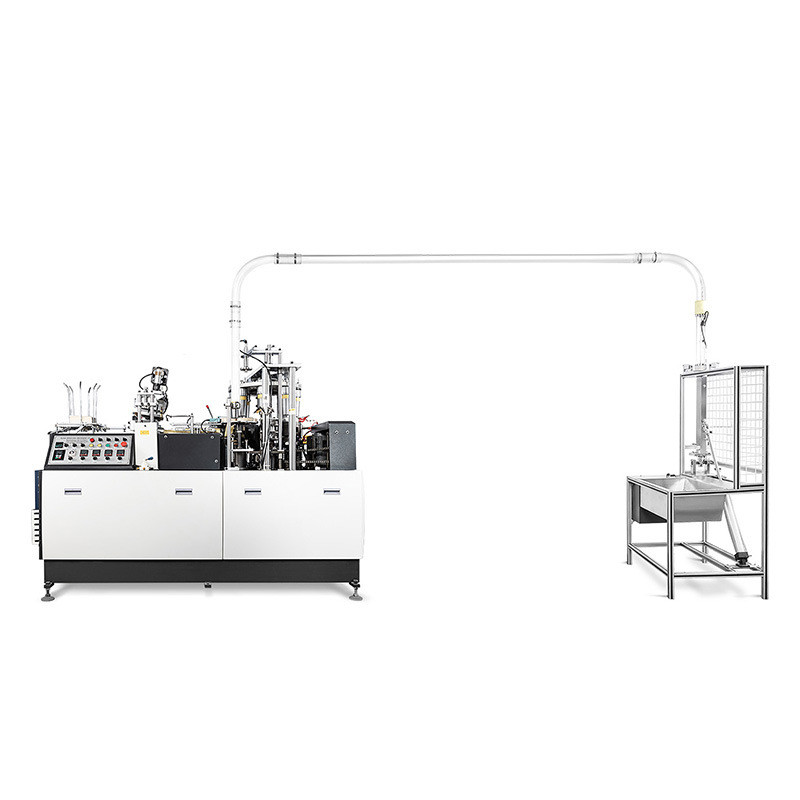

High Speed Paper Cups Plates Making Machine 75-85pcs/min

  • High Speed Paper Cups Plates Making Machine 75-85pcs/min
  • High Speed Paper Cups Plates Making Machine 75-85pcs/min
  • High Speed Paper Cups Plates Making Machine 75-85pcs/min
Place of Origin Guangdong, China
Brand Name Desu
Minimum Order Quantity 1 set
Price $30,000.00/Pieces 1-9 Pieces
Packaging Details Wooden packing
Product Details
Model High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 Paper Cup Size 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm
Rated Speed 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. Raw Material One Or Two SidePE Coated Paper(Popular For Hot And Cold Drink Cups)
Power Source 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. Cup Bottom Knurling Heater Knurling(ifuse Single PE Coated Paper)
High Light

85pcs/Min Paper Food Container Making Machine

,

Paper Cups Making Machine High Speed
Leave a Message
Product Description

machines for manufacturing paper cups paper plates and cups making machine china-paper-cup-making-machineHigh Speed Paper Cups Plates Making Machine 75-85pcs/min 0

Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater

Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)

High Speed Paper Cups Plates Making Machine 75-85pcs/min 1

High Speed Paper Cups Plates Making Machine 75-85pcs/min 2

Electric System:

High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.

High Speed Paper Cups Plates Making Machine 75-85pcs/min 3



Servo Motor:

The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)High Speed Paper Cups Plates Making Machine 75-85pcs/min 4



Paper size :

2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.)

Rated speed:

70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute

Paper material:

140-250 GSM.140~350gsm.

Power requirements:

 50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements

Total power :

6.5 kw, 7.5 kw.
Total weight : Gw /NW:1750 kgs/1650 Kgs.




High Speed Paper Cups Plates Making Machine 75-85pcs/min 6

Excerpted from the Internet, for reference only

1. Look at the outer packaging
It is necessary to carefully check whether the packaging signs are marked with "product name, manufacturer's name, factory address, production date, shelf life, product implementation standards, hygiene license" and other national regulations that must be marked. If the contents of the mark are incomplete or irregular, Then it is best not to buy such paper cups.
2. Look at the color
When buying paper cups, you should choose lighter color printing products, but if the paper color of the product is too white, a large amount of fluorescent whitening agent may be added or it may contain impurities, so it is not recommended to use it.
3. Smell
When buying a disposable paper cup, it is best to smell the smell first. If the paper cup emits a pungent smell, it is not suitable to buy it.
4, pinch
Good paper cups are hard and resilient, while inferior paper cups are flattened when squeezed. If the paper cup is soft to the touch and impurities can be seen in the light, it is a low-quality paper cup product, which will affect human health after use.
In addition to the above, the purchased disposable cups should be scalded with boiling water before use, so that some harmful substances in the inner membrane of the paper cups are volatilized into the water, and then the water filled for the first time is poured out to reduce the risk of human body damage. Intake of harmful substances in paper cups.
