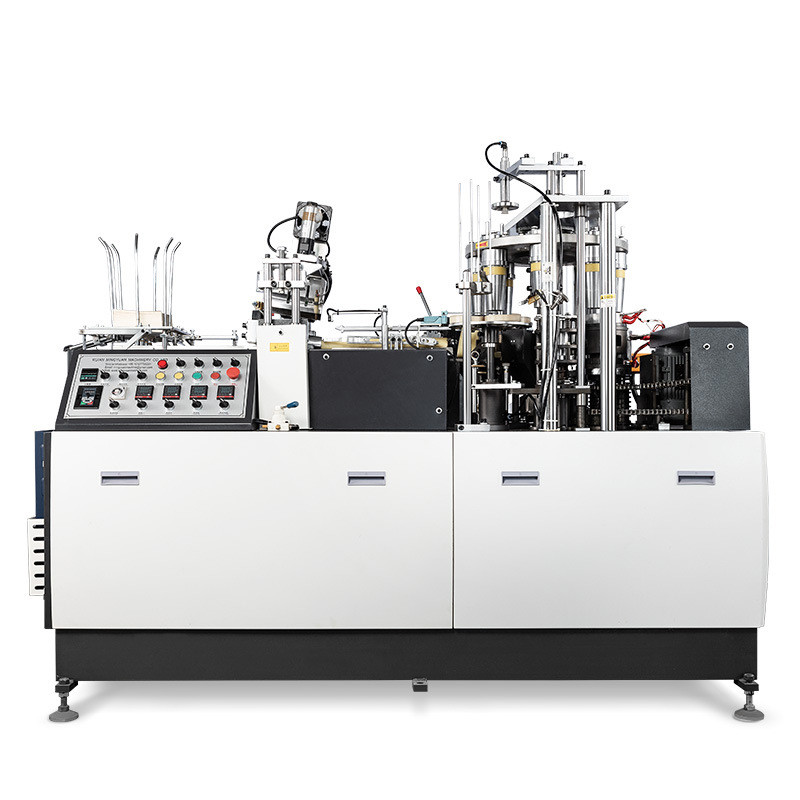

Offset Printing Paper Cup Packaging Machine PE coated Paper Tea Cup Making Machine
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Desu |
| Minimum Order Quantity | 1 set |
| Price | $30,000.00/Pieces 1-9 Pieces |
| Packaging Details | Wooden packing |
Product Details
| Model | High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 | Paper Cup Size | 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm |
|---|---|---|---|
| Rated Speed | 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. | Raw Material | One Or Two Side PE Coated Paper(Popular For Hot And Cold Drink Cups) |
| Power Source | 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. | Cup Bottom Knurling | Heater Knurling(ifuse Single PE Coated Paper) |
| High Light | Offset Printing Paper Cup Packaging Machine,PE Coated paper cup packaging machine,Coated Paper Tea Cup Making Machine |
||
Product Description
plastic cups offset printing machine paper cup packaging machine paper tea cup making machine
Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater
Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)
Electric System:
High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.
Servo Motor:
The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
|
Paper size : |
2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.) |
|
Rated speed: |
70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute |
|
Paper material: |
140-250 GSM.140~350gsm. |
|
Power requirements: |
50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements |
|
Total power : |
6.5 kw, 7.5 kw. |
| Total weight : | Gw /NW:1750 kgs/1650 Kgs. |
Excerpted from the Internet, for reference only

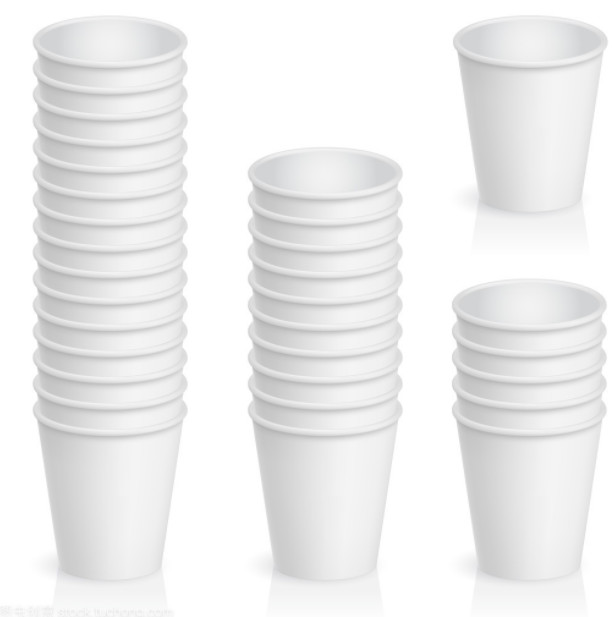

Paper cups are the product of rapid social development. In this social trend of environmental protection and convenience, paper cups and paper bowls are used more and more widely. The paper cup fully retains the advantages of paper products, and has good performance in terms of freshness, moisture-proof, anti-corrosion, sanitation, ease of processing and printability. Compared with plastic cups, paper cups have the advantages of low cost, light weight, convenient transportation, and recyclability. Accordingly, paper cup machines, which are used to produce paper cups, are increasingly used by manufacturers.
Paper cup is a kind of paper container made of base paper (white paperboard) made of chemical wood pulp by mechanical processing and bonding. The appearance is like a cup mouth. Paper cups can not only hold ice cream and jam, but also can withstand hot drinks above 90 ℃. The paper cup machine is a multi station automatic machine, through automatic paper feeding, cup edge heating and bonding, bottom feeding, cup bottom heating and pressing, knurling, curling to post forming and many other processes. The bonding quality of the cup edge and bottom determines the service life and cup strength of the paper cup machine.
