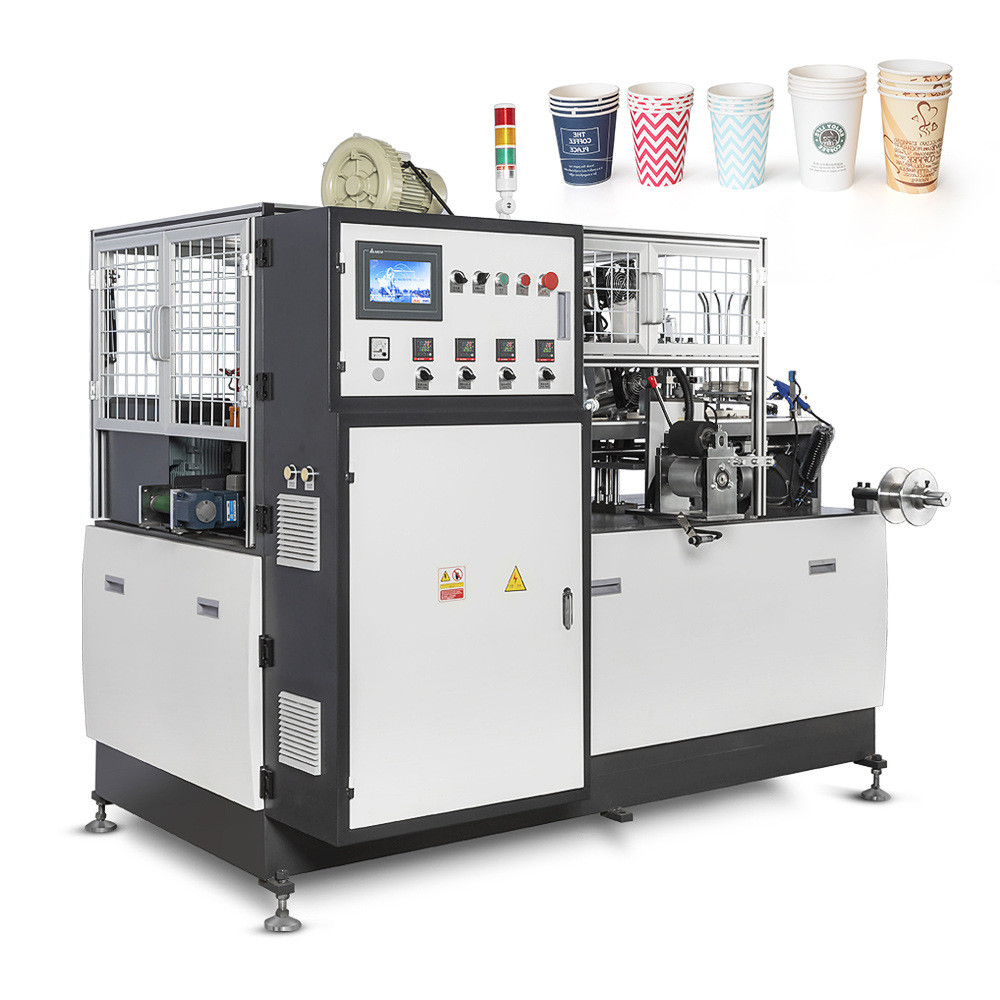

PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine

  • PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine
Place of Origin Guangdong, China
Brand Name Desu
Minimum Order Quantity 1 set
Price $30,000.00/Pieces 1-9 Pieces
Packaging Details Wooden packing
Product Details
Model High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 Paper Cup Size 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm
Rated Speed 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. Raw Material One Or Two Side PE Coated Paper(Popular For Hot And Cold Drink Cups)
Power Source 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. Cup Bottom Knurling Heater Knurling(ifuse Single PE Coated Paper)
High Light

Coated Paper disposable cup making machine

,

Heater Knurling disposable cup making machine

,

PE Coated paper cup packing machine
Leave a Message
Product Description

disposable cup machine making machine prices china paper cup making machine paper cup packing machinePE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 0

Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater

Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)

PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 1
PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 2

PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 3

Electric System:

High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.

PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 4PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 5



Servo Motor:

The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 6



Paper size :

2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.)

Rated speed:

70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute

Paper material:

140-250 GSM.140~350gsm.

Power requirements:

 50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements

Total power :

6.5 kw, 7.5 kw.
Total weight : Gw /NW:1750 kgs/1650 Kgs.




PE Coated Paper Disposable Cup Making Machine Paper Cup Packing Machine 8
