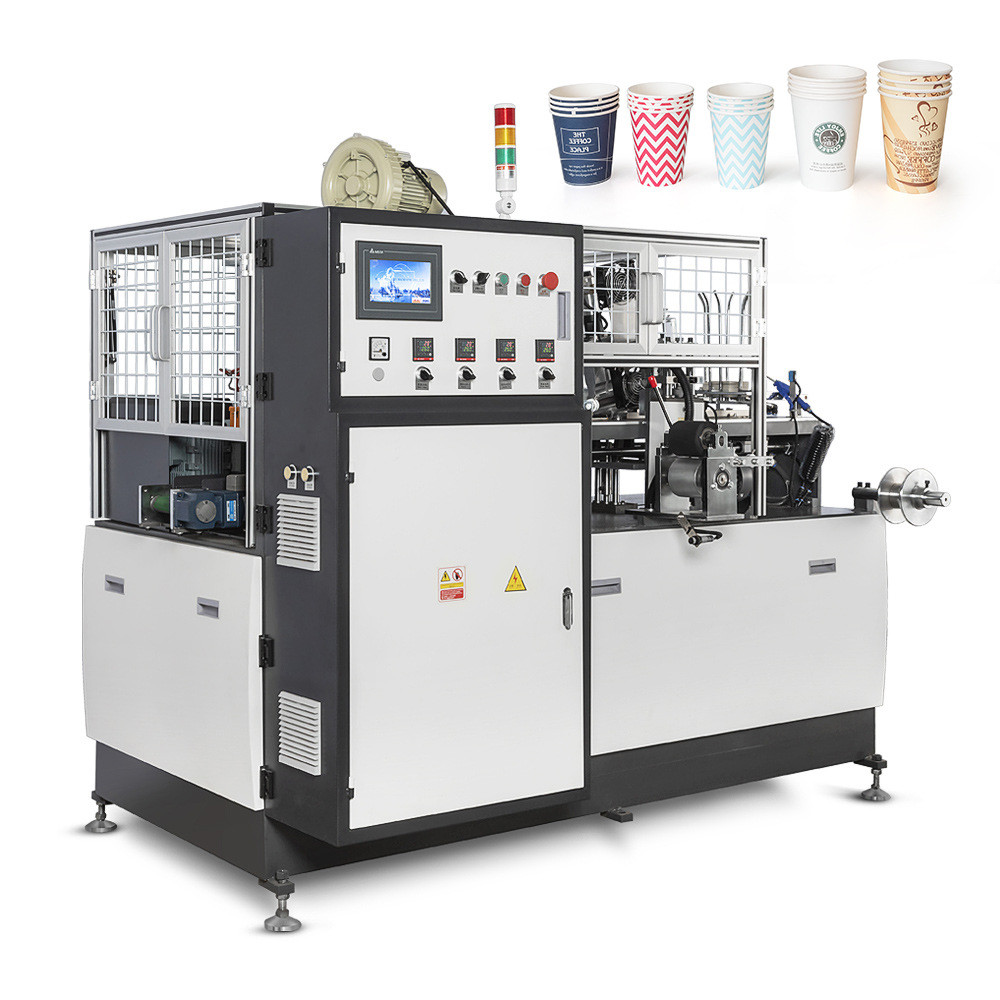

High Speed Paper Cup Forming Machine 75-85pcs/Min Heat Knurling Bottom
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Desu |
| Minimum Order Quantity | 1 set |
| Price | $30,000.00/Pieces 1-9 Pieces |
| Packaging Details | Wooden packing |
Product Details
| Model | High Speed Intelligence Model Paper Cup Machine JBZ-OCM12 | Paper Cup Size | 2~16 OZ(Mould Exchangeable,Max Cup Height: 136mm,Max Bottom Width: 76mm |
|---|---|---|---|
| Rated Speed | 75-85pcs/min (Speed Affected By Cup Size,paper Quality & Thickness)9OZ,280GSM Paper Cup Stable Running Speed 80 Pcs Each Min. | Raw Material | One Or Two Side PE Coated Paper(Popular For Hot And Cold Drink Cups) |
| Power Source | 50/60HZ,380V/220V(better Use 380V,3 Phase)or Special Power Requirement. | Cup Bottom Knurling | (ifuse Single PE Coated Paper) |
| High Light | Heat Knurling paper cup forming machine,0.4MPa paper cup forming machine,high speed paper cup forming machine |
||
Product Description
paper cup making forming machine cup sublimation machine cup face mask machine plastic cup machine making
Machine model: high-speed simple paper cup machine
Backside Soldering : Copper Heater Ultrasonic Heater
Raw material : single side PE coated paper (popular hot drink cup) single/double PE coated paper (popular hot drink cup and cold drink cup)
Total weight : Gw /NW:1750 kgs/1650 KgS.
Working air source (ultrasonic): Air pressure 0.4MPa a. machine.
Cup bottom heating: heater knurling (single-sided PE paper is heated and knurled; double-sided PE paper is knurled with cooling device circular water.)
Bottom knurling: heat knurling (if using single layer PE coated paper)
Electric System:
High-quality brand electrical systems, such as Delta, Schneider.
The PLC control system adopts the Delta brand, which is made in Taiwan and is reliable.
quality.
Servo Motor:
The bttom paper feeding is controlled by servo motor and stepping motor,which greatly improve paper feeding in high precision and
high efiency way.(more stable ,less troubles and save bottom paper)
|
Paper size : |
2~16 oz (replaceable die, max cup height 136mm, max bottom width 76mm.) |
|
Rated speed: |
70-80 per minute (the speed is affected by the size of the paper cup, paper quality and thickness), the running speed is stable, 75 per minute |
|
Paper material: |
140-250 GSM.140~350gsm. |
|
Power requirements: |
50/60 Hz.380V/220V (preferably use 380V, 3Phase) or special power requirements |
|
Total power : |
6.5 kw, 7.5 kw. |
| Total weight : | Gw /NW:1750 kgs/1650 Kgs. |
